Eclipse 99

Features

Güç kaynağı

230VAC +10%/-15%
Radyo frekans

50-60Hz
Transformatör

21VAC/50 VA
Çıkış gücü

13.8VDC/2.5A otomatik
Çalışma ısı aralığı

0°C ila +50°C aras
Malzeme/Renk

ABS plastik, beyaz
Ebatlar

335x290x105mm

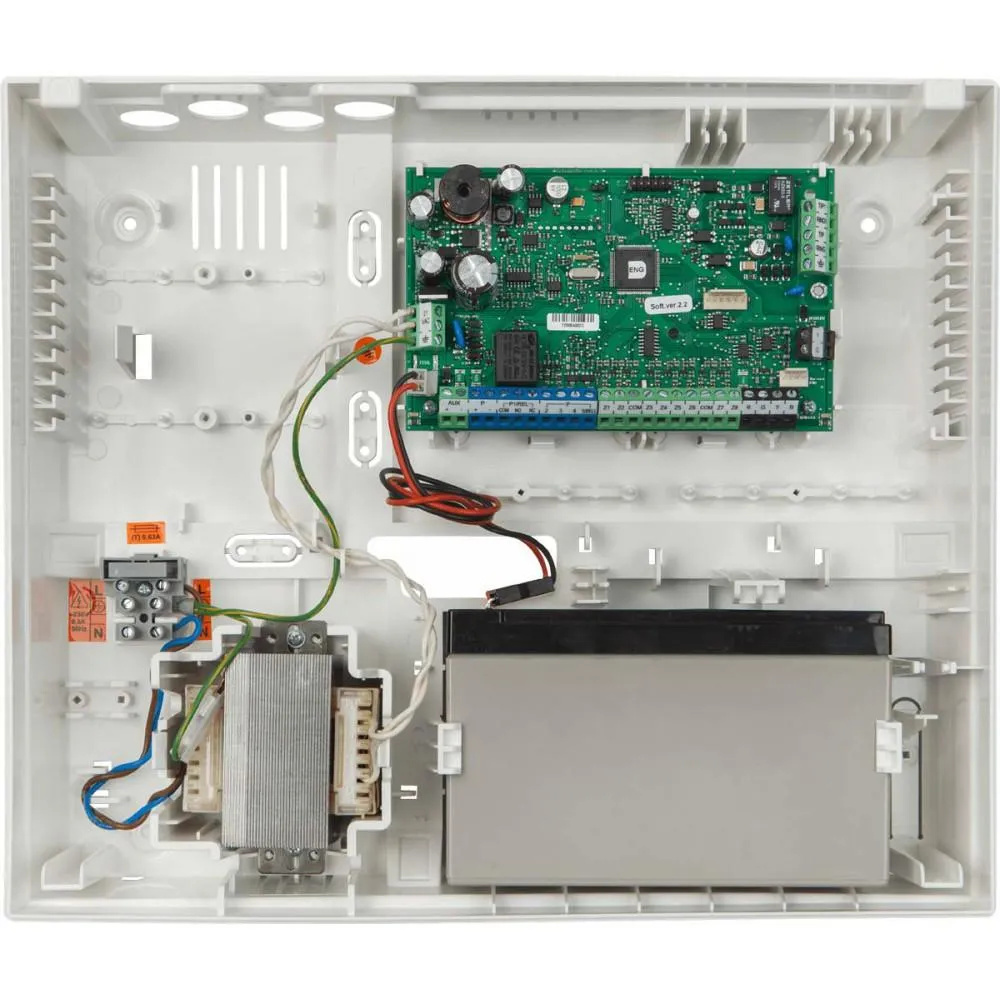

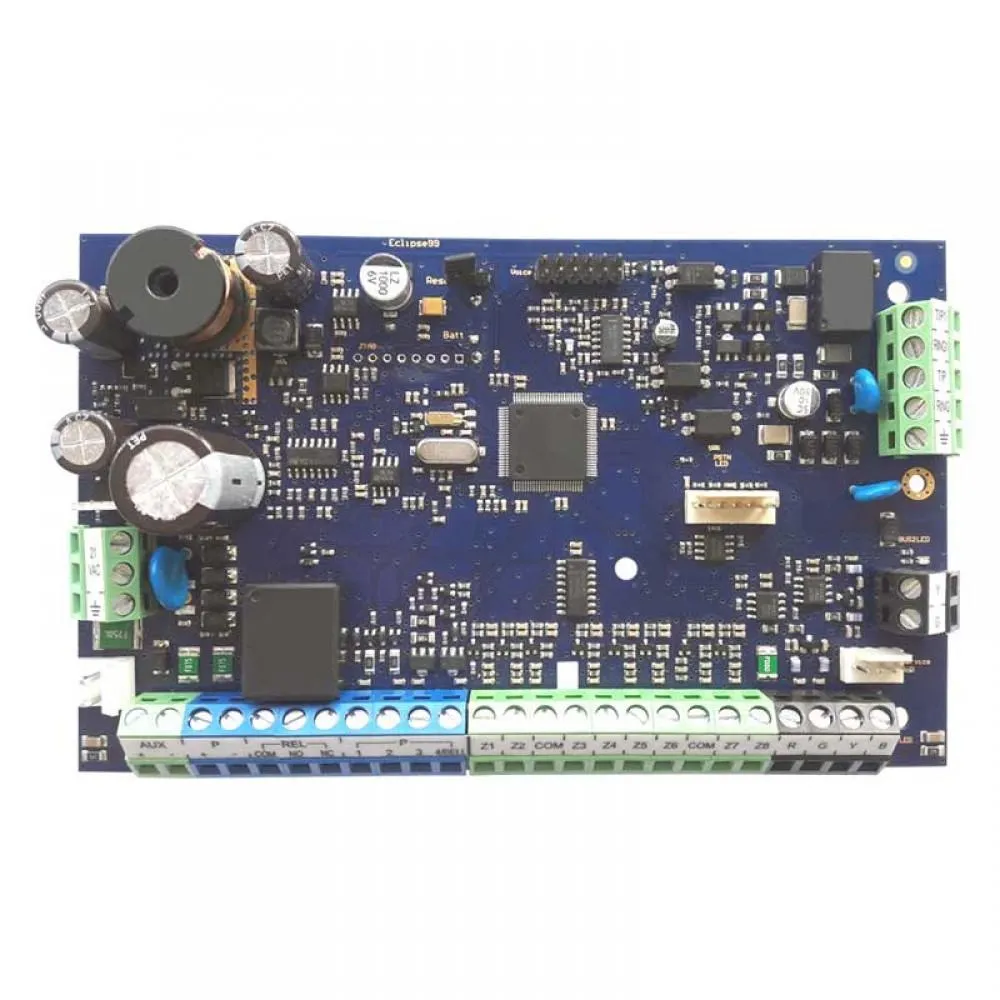

Eclipse 99 is an alarm control panel designed for the protection of large-scale residences, commercial, and office spaces. It comes with 8 physical inputs and can expand up to a maximum of 99 zones. The panel supports 16 groups, each individually programmable. It provides a reliable solution for systems requiring access control and management. The panel can be managed using a keypad and/or card reader. Programming is done through the keypad or directly via the ProsTE software. Additional monitoring and management capabilities are provided through the MobileTTE (iOS/Android)* mobile application. The system allows the installer to choose from 3 different programming modes – 4-digit addresses, 3-digit operations, or text menus (tree structure).
